Body Solid GS348B Series 7 Smith Machine
Body Solid GS348B Series 7 Smith Machine is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Body Solid GS348B Series 7 Smith Machine
Description
Description

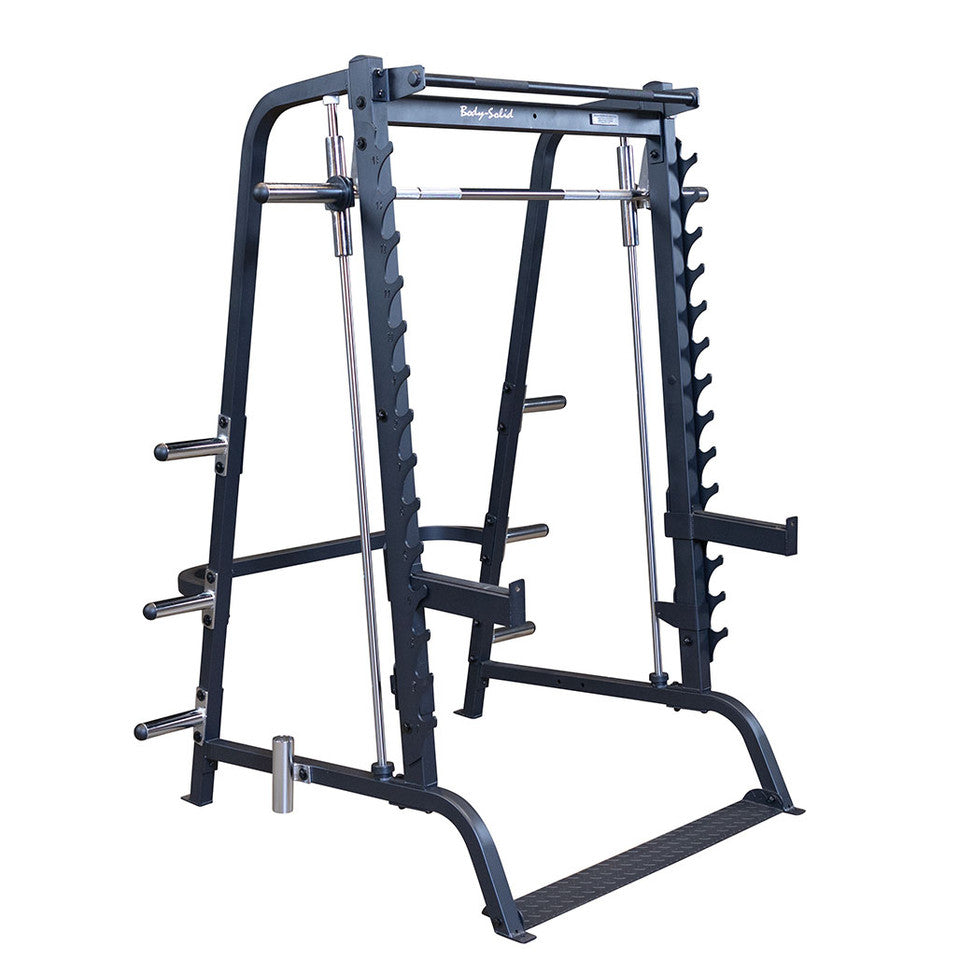

Body-Solid GS348B Series 7 Smith Machine
The Body-Solid GS348B Series 7 Smith Machine is a commercial-rated Smith machine and half rack designed for total body strength training, Olympic barbell workouts, and space-saving gym performance.
Built with an 11-gauge and 12-gauge 2” x 3” welded steel mainframe, 7-degree movement angle, linear ball-bearing Smith system, 20 lockout points, free-weight gun rack, safety spotter arms, and Olympic plate storage, the GS348B delivers versatile strength training for commercial facilities and serious home gyms.
Key Features
- Smith machine and half rack combination supports guided lifting and free-weight barbell training in one compact station.

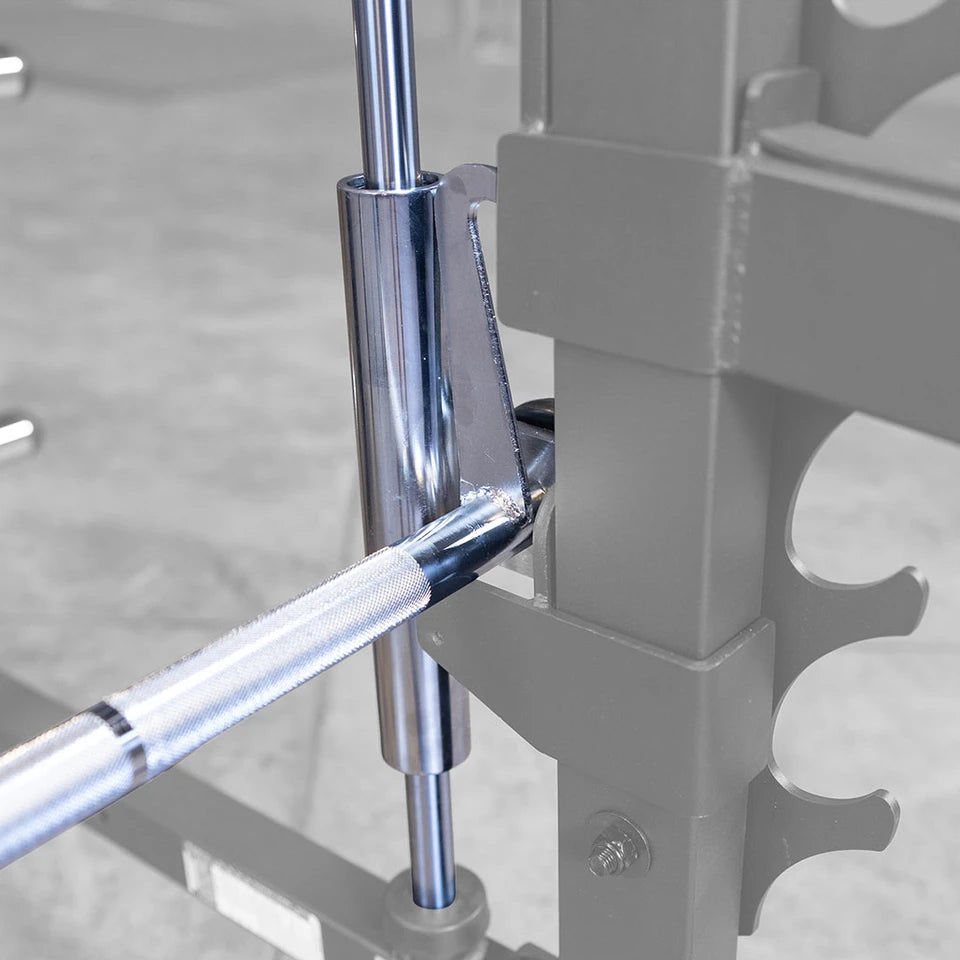

- Linear ball-bearing Smith system provides smooth bar travel for squats, presses, rows, and total body workouts.
- 20 cross-member lockout points and adjustable safety catch help users train heavy with added control and confidence.
- Large diameter Smith bar starts at 25 lbs. and supports up to 600 lbs. of 2” Olympic plates.

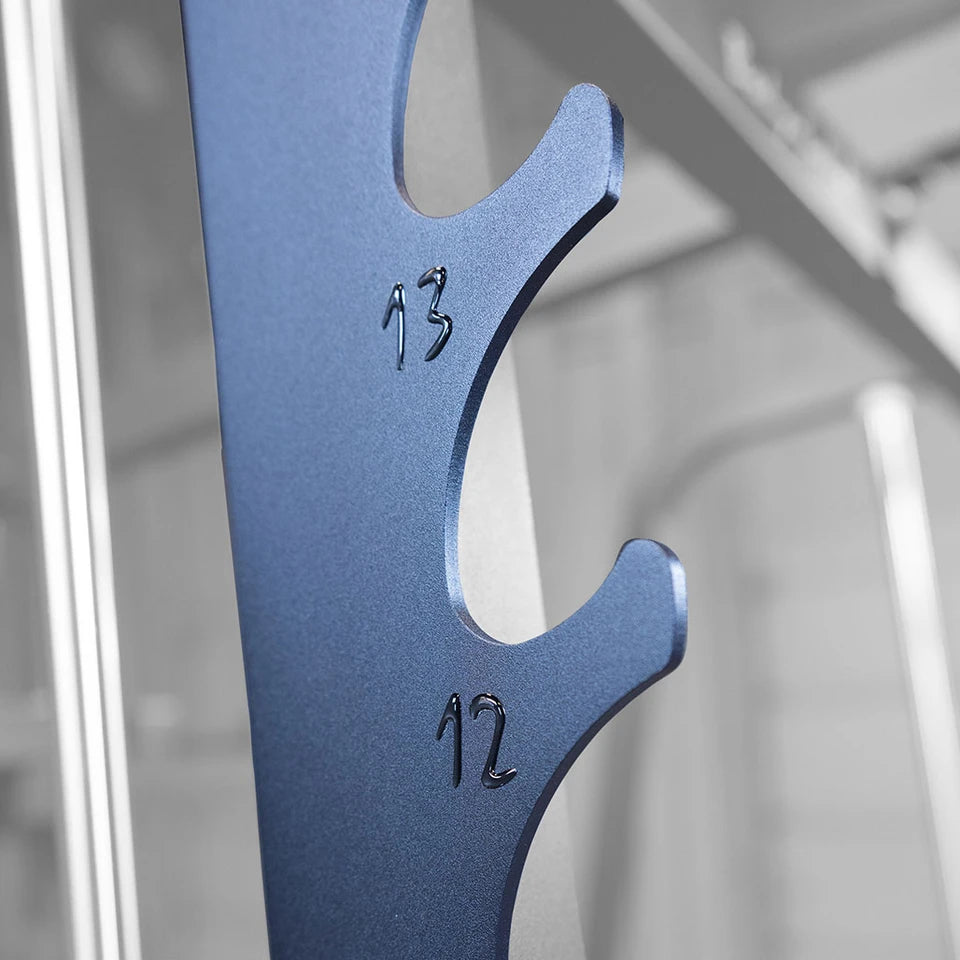

- Free-weight gun rack system supports up to 1,000 lbs. and includes 14 lift-off and racking positions.

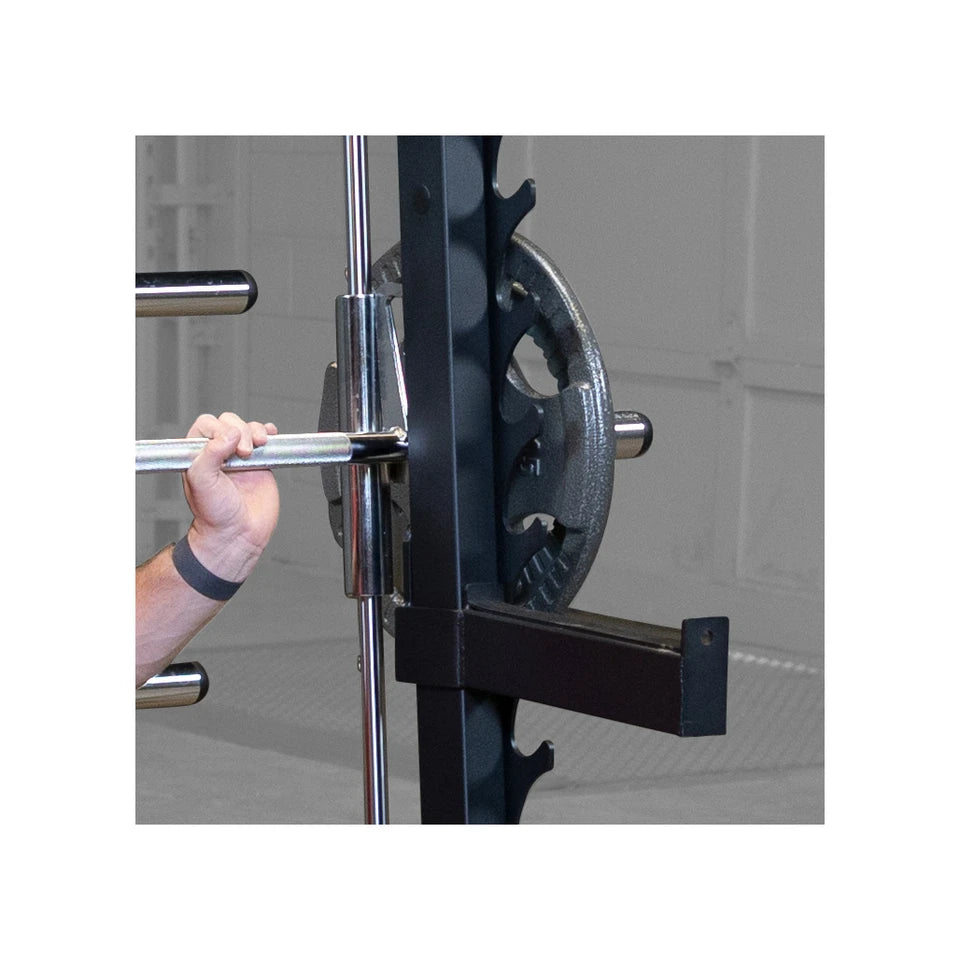

- 17” safety spotter arms provide additional support for free-weight barbell exercises.
- Six Olympic weight plate storage posts and a single Olympic bar holder help keep training areas organized.
Exercises
Use the GS348B for Smith machine squats, bench press, incline press, shoulder press, upright rows, lunges, calf raises, rack pulls, barbell squats, free-weight bench press, overhead press, and total body strength training.
Who This Is For
This Smith machine is ideal for commercial gyms, school weight rooms, personal training studios, athletic facilities, apartment fitness rooms, and home gym users who want a durable rack system with both guided Smith training and free-weight barbell capability.
Specifications
- Application: Commercial
- Exercise Focus: Total body
- Type: Smith machine
- Dimensions: 56.00” L x 70.00” W x 83.00” H
- Product Weight: 276 lbs. / 125.19 kg
- Frame: All-4-side welded 11-gauge and 12-gauge 2” x 3” mainframe steel construction
- Finish: Black, new in 2024
- Movement Angle: 7 degrees
- Smith Bar Starting Weight: 25 lbs.
- Smith Bar Capacity: 600 lbs. of 2” Olympic plates
- Smith System: Linear ball-bearing Smith system
- Lockout Points: 20 cross-member lockout points
- Safety System: Fully adjustable Smith safety system with adjustable safety catch
- Free-Weight Gun Rack Capacity: 1,000 lbs.
- Free-Weight Rack Positions: 14 lift-off and racking positions
- Spotter Arms: 17” safety spotter arms
- Plate Storage: Six Olympic weight plate storage posts
- Bar Storage: Single Olympic bar holder
- Compatible Attachments: GLA348B Series 7 Smith Machine Lat Attachment, GLA348BS Series 7 Smith Machine Lat Attachment with 210 lb. weight stack, GPA3B Smith Machine Pec Attachment, GPU348 Smith Machine Pull-Up Bar, GAP348 Aluminum Pulley Set Upgrade
- Assembled Dimensions: 56.00 in / 1,422.40 mm L x 70.00 in / 1,778.00 mm W x 83.00 in / 2,108.20 mm H
- Package Dimensions: 87.40 in / 2,219.96 mm L x 17.72 in / 450.09 mm W x 5.12 in / 130.05 mm H
- Package Volume: 4.59 ft³ / 0.13 m³
- Plates, Barbell, Bench, and Attachments: Sold separately unless included in a selected package
Warranty
Backed by Body-Solid Commercial Warranty and Body-Solid In-Home Lifetime Warranty coverage.
Frequently Asked Questions
Is the Body-Solid GS348B suitable for commercial gyms?
Yes. The GS348B is commercial rated and built with welded 11-gauge and 12-gauge steel construction, a heavy-duty Smith system, free-weight rack positions, spotter arms, and Body-Solid commercial warranty coverage.
Can this machine be used as both a Smith machine and a half rack?
Yes. The GS348B combines a guided Smith machine with a free-weight gun rack system, allowing users to perform both Smith bar exercises and traditional Olympic barbell lifts.
How much weight can the Smith bar hold?
The Smith bar starts at 25 lbs. and can handle up to 600 lbs. of 2” Olympic plates.
What attachments are compatible with the GS348B?
Compatible options include the GLA348B lat attachment, GLA348BS lat attachment with 210 lb. weight stack, GPA3B pec attachment, GPU348 pull-up bar, and GAP348 aluminum pulley set upgrade.
Resources
Body-Solid GS348B Product Manual
Body-Solid GS348B Product Data Sheet
Body-Solid Smith Machine Comparison Chart
Body-Solid Commercial Warranty
Body-Solid Product Warranties
