Force USA C10 All-In-One Trainer

The Force USA C10 is a compact all-in-one trainer that combines a six-post power rack, Cornerstone® six-pulley functional trainer, and a single-column Smith machine in one 11-gauge steel frame. Dual integrated 200 lb weight stacks, Freestyle pulley arms, and a 44-inch interior working width cover cable, free-weight, and guided-bar training without filling a full gym floor.

Square 11-gauge uprights use a laser-cut 5/8-inch hole pattern with 2-inch spacing on all four sides, so third-party attachments can mount on an open ecosystem. A flush, self-adjusting base keeps the frame planted on slightly uneven floors. Center-connected cables deliver up to 500 lb of resistance, and the stacks can be upgraded to 250 lb per side.

Key Features

• Cornerstone® Six-Pulley Station: Dual Freestyle pulley arms plus high and low center cable stations so you can change angles without reconfiguring the machine.
• Freestyle Pulley Arms: Lock Mode pins each arm for a fixed path on rows, presses, and lat pulldowns. Flow Mode releases the pin so the arms track 180 degrees with the user.
• Three Pulley Ratios: Bottom center cables 1:1 (or linked for double resistance); top center cables 2:1; Freestyle arms 2:1.
• Dual 200 lb Stacks: Pin-select stacks upgradeable to 250 lb per side, with a built-in 5 lb micro-adjustment plate. Maximum 500 lb when both upgraded stacks connect through the 1:1 system.
• Single-Column Smith Machine: Guide rod wrapped in 5-gauge steel, lowest starting position for a full deadlift range, spinning sleeves, and a 35 lb integrated bar.
• Six-Post 11-Gauge Frame: Square steel uprights, 5/8-inch holes on 2-inch centers, and a flush self-adjusting base.
• 44-Inch Interior Width: 48-inch exterior width (77 inches with the Smith machine) sized for bench, squat, and deadlift work.
• Aircraft Cables: 6.2 mm nylon-coated mil-spec cable tested to 2,000 lb.
• 18 Pro-Grade Attachments: Aluminum cable attachments plus steel rack hardware, including Pin-Lock J-cups and locking spotter arms with UHMW inserts that protect barbell knurling.

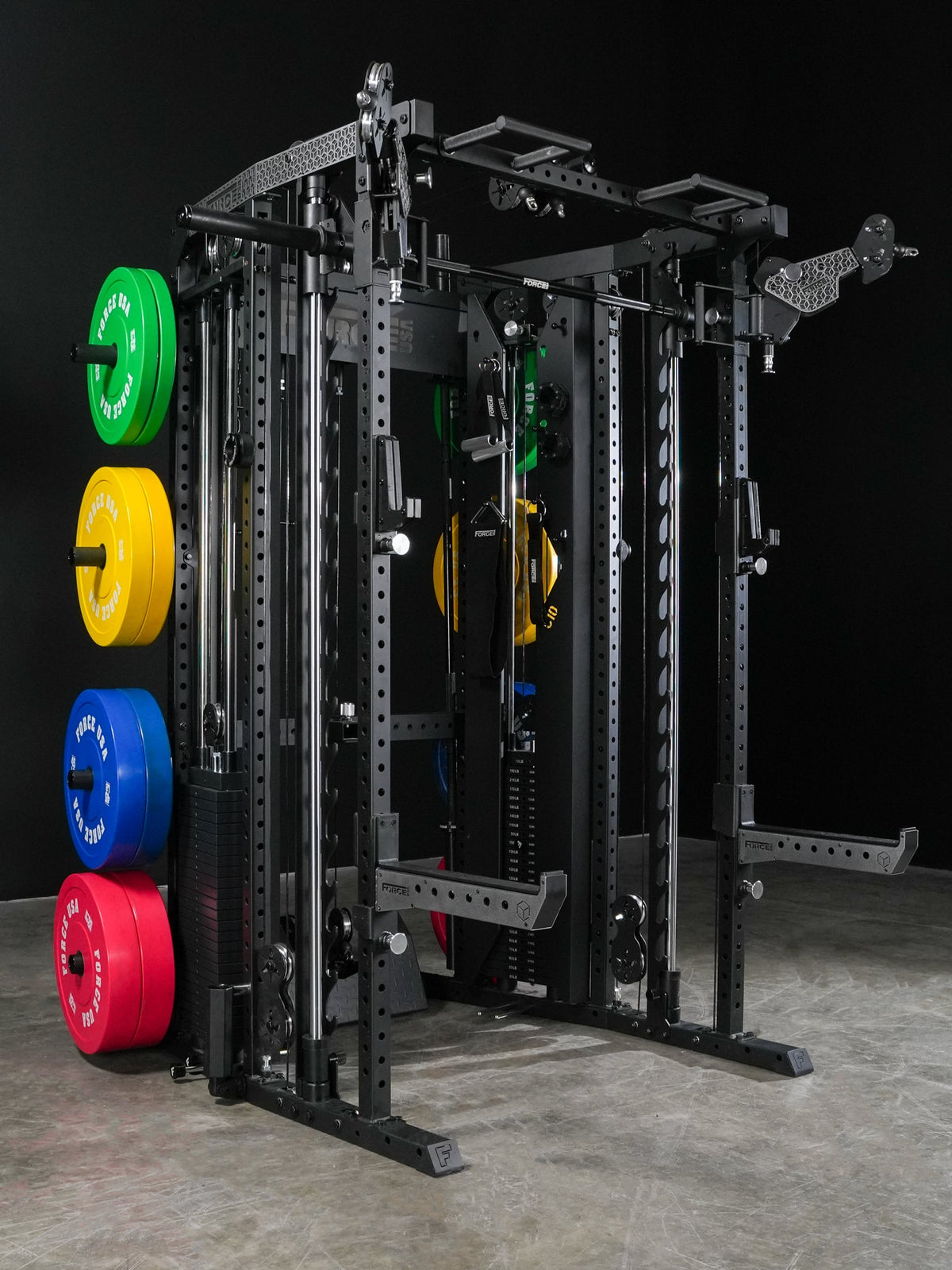

• Integrated Storage: Recessed accessory shelf, 8 Olympic plate horns, 12 pegboard pegs, UHMW-protected barbell holder, magnetic landmine, and magnetic collars.
• Sliding Bench Ready: Optional Force USA Sliding Bench (sold separately) cable-connects to the dual stacks for leg press, hack squat, leg curl, leg extension, and preacher curl — up to 600 lb on the lower center cables.

Feature Highlights

Exercises & Training Applications

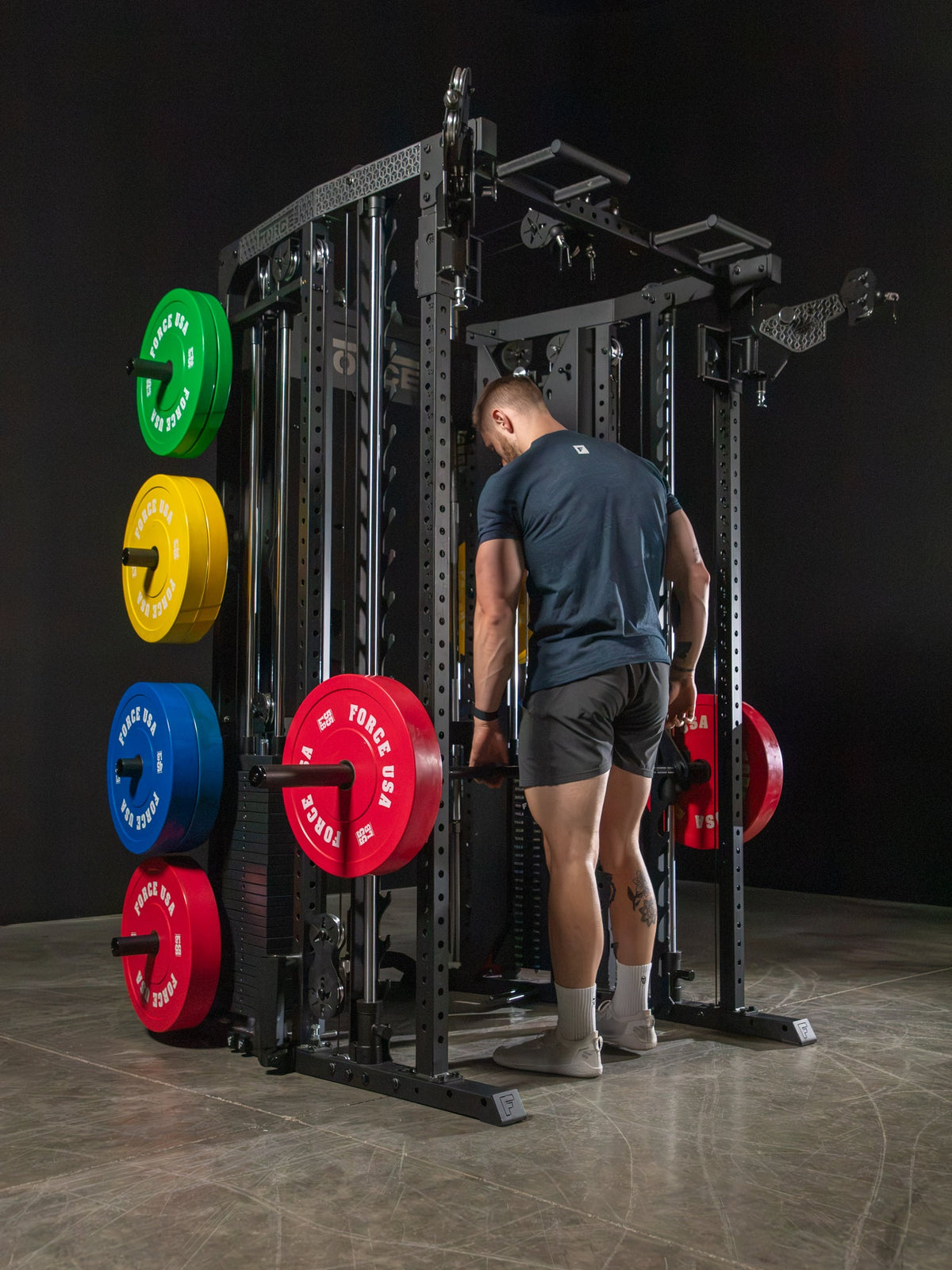

• Power rack: Squat, bench press, overhead press, and deadlift on the 44-inch interior with Pin-Lock J-cups and locking spotter arms.
• Functional trainer: Rows, presses, lat pulldowns, chops, and rotational work on Freestyle arms (Lock or Flow) plus high and low center cables.
• Smith machine: Guided squat, bench, and deadlift from a low start position with a 35 lb integrated bar.
• Chin-up / pull-up: Full pull-up requires 8 ft 4 in of ceiling height; maximum listed user height is 7 ft 1 in.
• Landmine: Magnetic landmine parks flush to the frame when not in use.

Who This Is For

Specifications

Warranty

⚠️ California Proposition 65 Warning: This product can expose you to chemicals including those in rubber, foam, plastic, or coated metal components, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
